ACL 電磁閥2位2通 直動式150
ACL 電磁閥2位2通 直動式150
詳細介紹

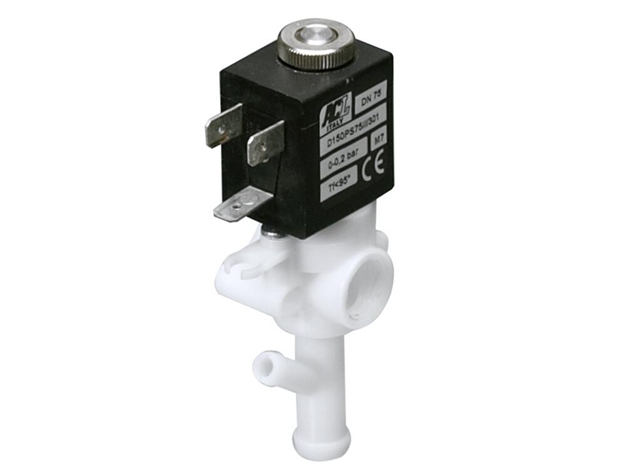

ACL 電磁閥2位2通 直動式150
類別：2/2直接作用干式
描述
電磁閥2通常閉
與干式電樞直接作用。
沒有金屬部件與介質接觸。
TYPE: 150
Category: 2/2 Direct Acting Dry
Description
Solenoid valve 2 way normally closed
direct acting with dry armature.
No metal parts in contact with the media.

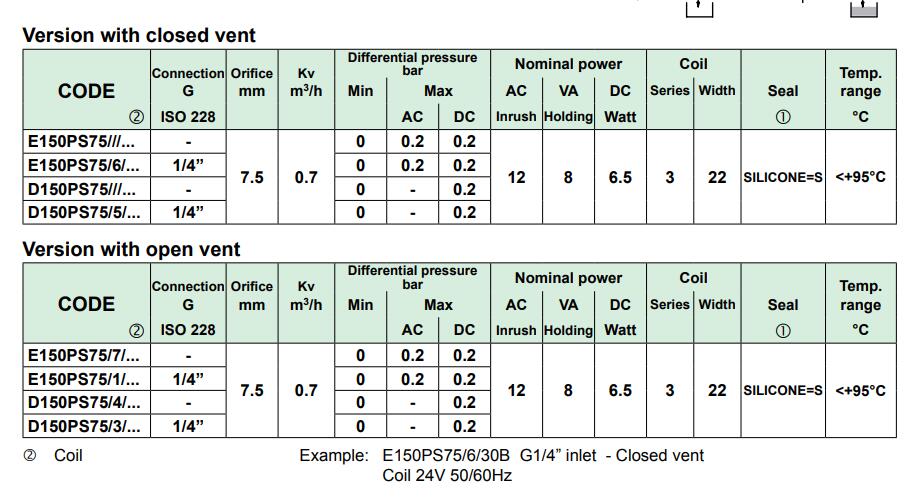

| 2/2 Direct Acting Dry | |||||||||||||
| TYPE | PORT SIZE | ORIFICE | Kv | DIFFERENTIAL PRESSURE ΔP bar | NOMINAL POWER | COIL | SEAL | TEMPERATURE RANGE | |||||
| mm | m3/h | MIN | MAX | AC-VA | DC | width | TYPE | ||||||
| AC | DC | INRUSH | HOLDING | W | °C | ||||||||
 150 | G 1/4 | 7.5 | 0.7 | 0 | 0.2 | 0.2 | 12 | 8 | 6.5 | 22 | 3 | SILICONE | <+95 |
