ACL 2位3通直動式閥Direct Acting 307

ACL 2位3通直動式閥Direct Acting 307

電磁閥3通常開

直接作用提升閥型

構(gòu)造

車身黃銅

電樞管黃銅

柱塞和芯AISI 430FR

彈簧AISI 302

密封材料NBR-FPM-EPDM

功能

最大允許壓力PS 50bar?

最大流體粘度25cSt（mm2/s）

環(huán)境溫度：根據(jù)線圈，從-10°C到+80°C

通用安裝位置

選項：不銹鋼電樞管

化學(xué)鍍鎳

7系列防爆線圈

符合ATEX-EExmII

帶軟管尾部連接的排氣口

DESCRIPTION

Solenoid valve 3 way normally open

direct acting poppet type

CONSTRUCTION

Body Brass

Armature tube Brass

Plunger and core AISI 430FR

Springs AISI 302

Seal material NBR - FPM - EPDM

FEATURES

Maximum allowable pressure PS 50bar?

Maximum fluid viscosity 25cSt (mm2/s)

Ambient temperature: from -10°C to +80°C according to the coil

Universal mounting position

OPTIONS: Stainless steel armature tube

 Electroless nickel plating

 Series 7 explosion proof coil according

 to ATEX - EExmII

 Exhaust port with hosetail connection

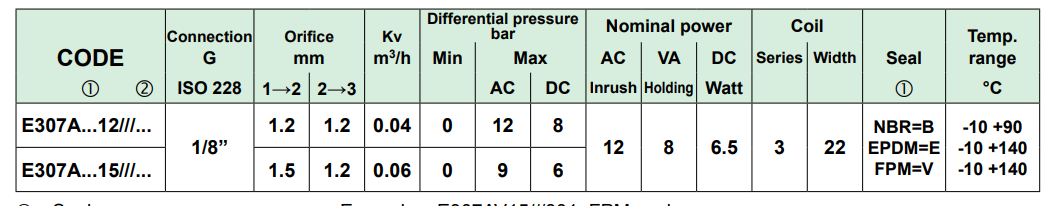

3/2 Direct Acting NO

TYPE

PORT SIZE

ORIFICE

Kv

DIFFERENTIAL PRESSURE ΔP bar

NOMINAL POWER

COIL

SEAL

TEMPERATURE RANGE

mm

m3/h

MIN

MAX

AC-VA

DC

width

TYPE

1-2

2-3

AC

DC

INRUSH

HOLDING

W

°C

307

G 1/8

1.2 1.5

1.2 1.2

0.04 0.06

0 0

12 9

8 6

12

8

6.5

22

3

NBR EPDM FPM

-10 +90 -10 +140 -10 +140
